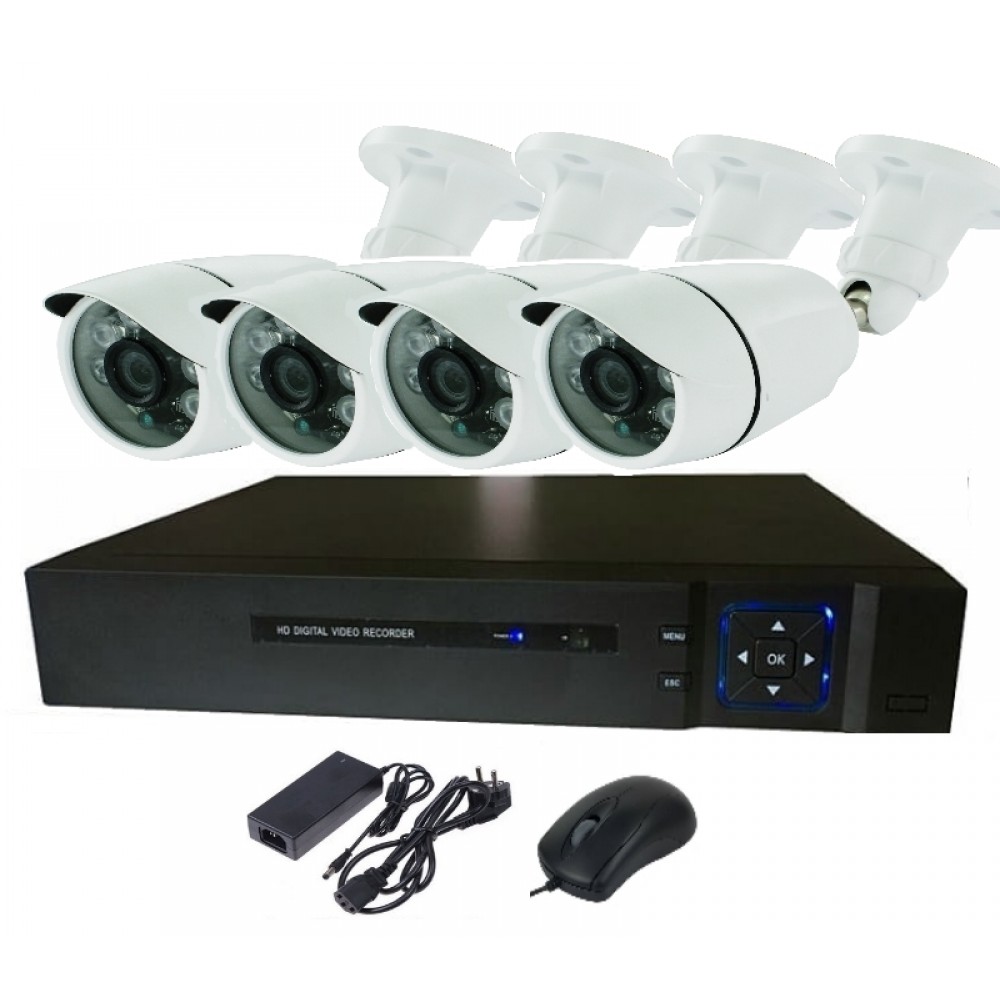

4-channel video surveillance set with AHD cameras 4,0 Mpix 2688 x1520 AHD4007

4-channel video surveillance set with AHD cameras 4,0 Mpix 2688 x1520 AHD4007

4-channel video surveillance set with AHD cameras 4,0 Mpix 2688 x1520 AHD4007

11,000.00р.
11,000.00р.
10
  • operating system: Linux
  • Video compression algorithm: H 264
  • video Resolution: PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 х 1200
  • video Output: 1 VGA HDMI
  • Audio Input: 1 channel
  • Audio output: 1 channel
  • Maximum frame rate: 120 sec (NTSC), 100 sec (PAL)
  • audio compression: 8kHz * 16bit ADPCM
All specifications
  • Product Code:   AHD4007

A set of video surveillance is a completely interconnected periphery. This is a very convenient equipment for those who are looking for a good solution for protecting an apartment, an entrance, or on a country house. Hybrid 4-channel 1080H AHD A1004GS supports: AHD analog cameras up to 4.0 Mpix 2688 x1520 video compression H.264, hard disk up to 6 TB 3.5 "HDD SATA (not included), for easy system management wired optical Mouse.Video recorder records data at a speed of 100/120 frames per second. There is access through the cloud service P2P: www.xmeye.net / Android; IOS APP xMeye mobile browsing.

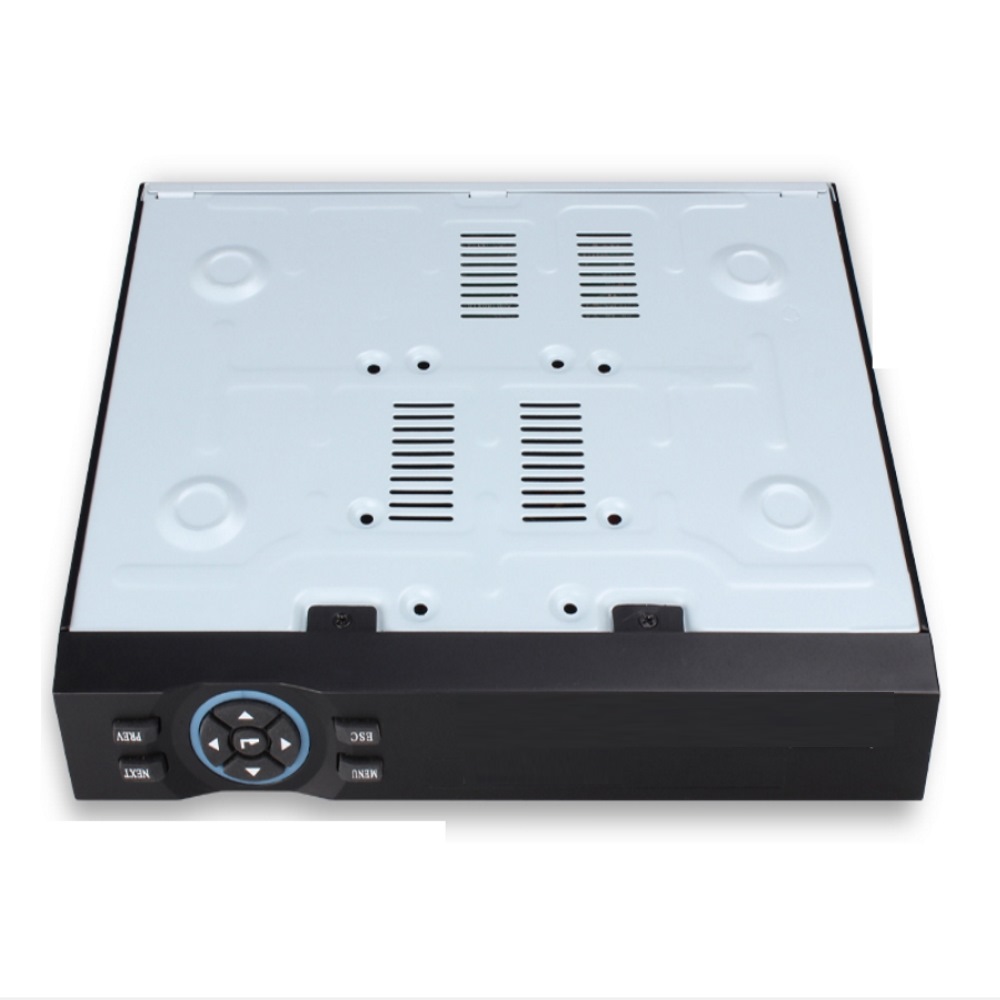

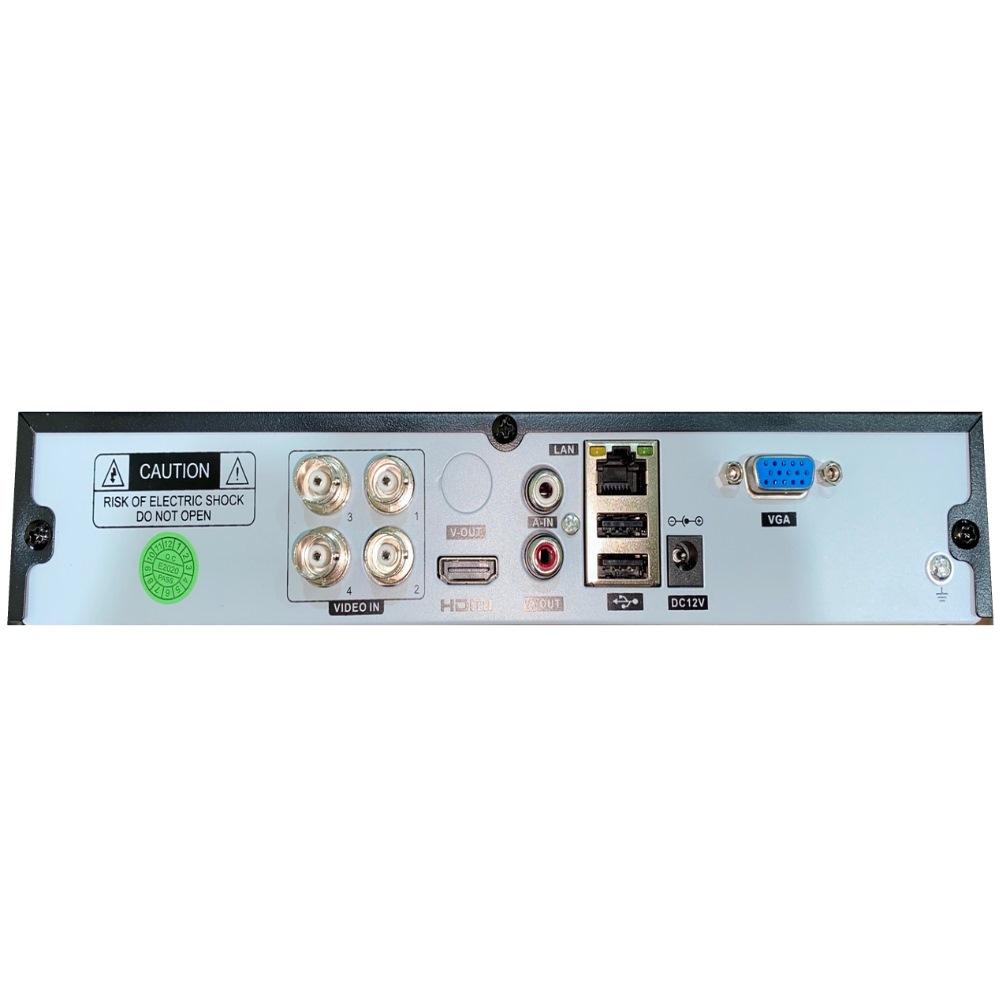

DVR
operating system
Linux
Video compression algorithm
H 264
video Resolution
PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 х 1200
video Output
1 VGA HDMI
Audio Input
1 channel
Audio output
1 channel
Maximum frame rate
120 sec (NTSC), 100 sec (PAL)
audio compression
8kHz * 16bit ADPCM
recording Modes
Manual Installation / motion sensor / alarm / schedule
HDD Interface
4TB 1 x HDD SATA (item does not contain a hard disk)
network interface
RJ45, 10M/100M
network Protocol
Support TCP / IP, UDP, DHCP, DNNS, PPPoE
network capabilities
Support for viewing real-time mobile phone
USB2.0 interface
2 ports
P2P
support
power consumption
From 10 to 15 W.
WIFI/3G(беспроводной порт)
support
Power
DC 12V/2A (power adapter included)

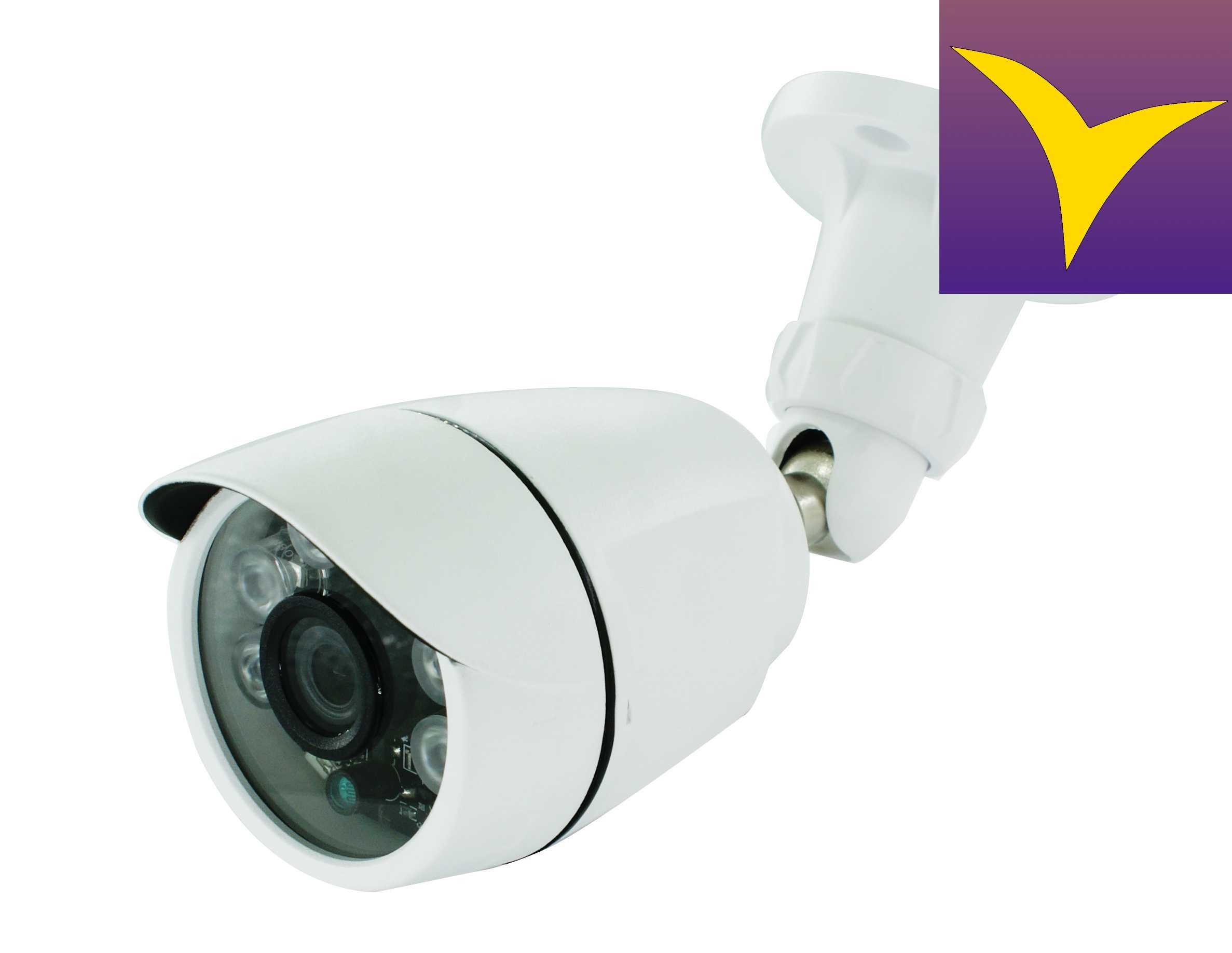

Camcorders
Protection class camera
Outdoor (IP66)
matrix
CMOS
lens
3,6mm / 6mm
Resolution
4,0 Mpix, (2688 x1520)
Night vision range
IR 20m
sensitivity
0.2Lux
BLC
automatic
power consumption
Less than 3 watts
Electronic Shutter
1/50 (1/60) - 100 000 sec
Signal / noise
More than 48dB (AGC)
synchronization
Internal
Gamma Correction
0.45
video Output
1 Vp-p at 75 ohm
white Balance
automatic
video system
PAL / NTSC
power
DC 12V
4-channel video surveillance set with AHD cameras 4,0 Mpix 2688 x1520 AHD4007
