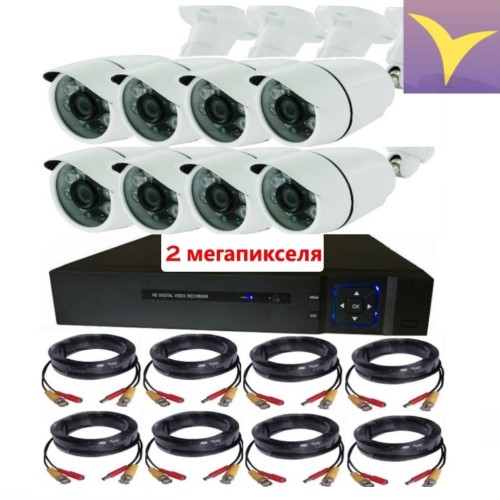

8-channel video surveillance set with AHD cameras 2,0 MP AHD8008
14,000.00р.
14,000.00р.
5
- operating system: Linux
- Video compression algorithm: H 264
- video Resolution: PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 x 1200
- video Input: Local analog input: AHD-H (1080 P) * 8 / AHD-M (720P) * 8 / AHD-L (960 H) * 8; Mixed input: 4 * AHD-M (720P) + 4 * 720 P (IP network) / 720 P (IP network) + 2 * 1080 P (IP network) Digital input: 4 * 720 P (IP network)
- video Output: 1 VGA HDMI
- Audio Input: 1 channel
- Audio output: 1 channel
- Maximum frame rate: 120 sec (NTSC), 100 sec (PAL)
- Product Code: VD-9AK05S8A
Set video is fully interconnected peripherals. It is very convenient equipment for those looking for a good solution to protect the apartment, porch, or a country house.
AHD 4-channel 960H AHD-M supported: analog and network cameras, video compression H.264, remote viewing via a mobile phone, hard disk up to 4 TB 3.5 "HDD SATA (batteries not included) for easy system management attached wire optical mouse. The DVR records the data at 100/120 frames per second. There is access through the cloud P2P service
| DVR | |
| operating system | Linux |
| Video compression algorithm | H 264 |
| video Resolution | PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 x 1200 |
| video Input | Local analog input: AHD-H (1080 P) * 8 / AHD-M (720P) * 8 / AHD-L (960 H) * 8; Mixed input: 4 * AHD-M (720P) + 4 * 720 P (IP network) / 720 P (IP network) + 2 * 1080 P (IP network) Digital input: 4 * 720 P (IP network) |
| video Output | 1 VGA HDMI |
| Audio Input | 1 channel |
| Audio output | 1 channel |
| Maximum frame rate | 120 sec (NTSC), 100 sec (PAL) |
| audio compression | 8kHz * 16bit ADPCM |
| recording Modes | Manual Installation / motion sensor / alarm / schedule |
| HDD Interface | 4TB 1 x HDD SATA (item does not contain a hard disk) |
| network interface | RJ45, 10M/100M |
| network Protocol | Support TCP / IP, UDP, DHCP, DNNS, PPPoE |
| network capabilities | Support for viewing real-time mobile phone |
| USB2.0 interface | 2 ports |
| ONVIF (Open Forum Protocols webcasting) | support |
| P2P | support |
| power consumption | From 10 to 15 W. |
| Power | DC 12V/2A (power adapter included) |
| Camcorders | |
| Protection class camera | Outdoor (IP66) |
| matrix | CMOS |
| lens | 3,6mm / 6mm |
| Resolution | 3000 TVL 1080 P 2.0MP |
| Night vision range | IR 20m |
| sensitivity | 0.2Lux |
| BLC | automatic |
| power consumption | Less than 3 watts |
| Electronic Shutter | 1/50 (1/60) - 100 000 sec |
| Signal / noise | More than 48dB (AGC) |
| synchronization | Internal |
| Gamma Correction | 0.45 |
| video Output | 1 Vp-p at 75 ohm |
| white Balance | automatic |
| video system | PAL / NTSC |
| power | DC 12V |
Tags: 8-channel video surveillance set with ahd cameras 2, 0 mp ahd8008, ahd8008
