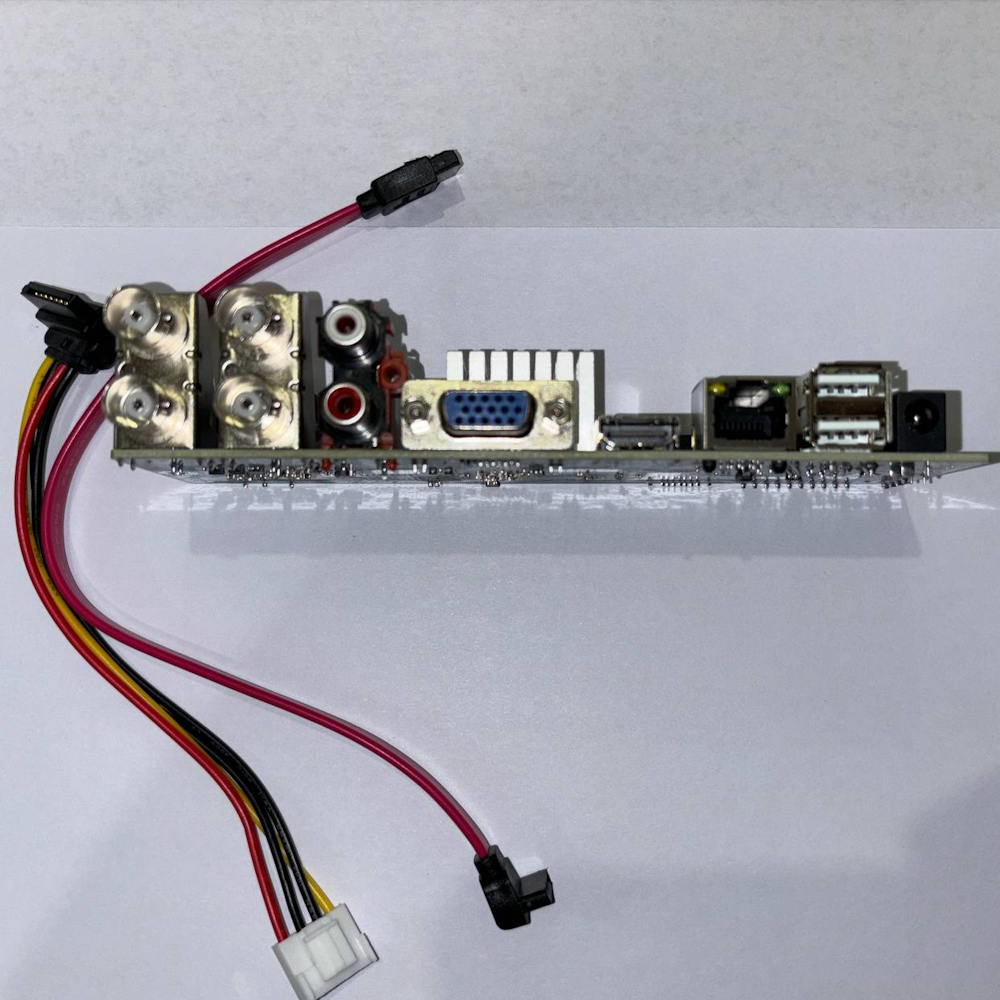

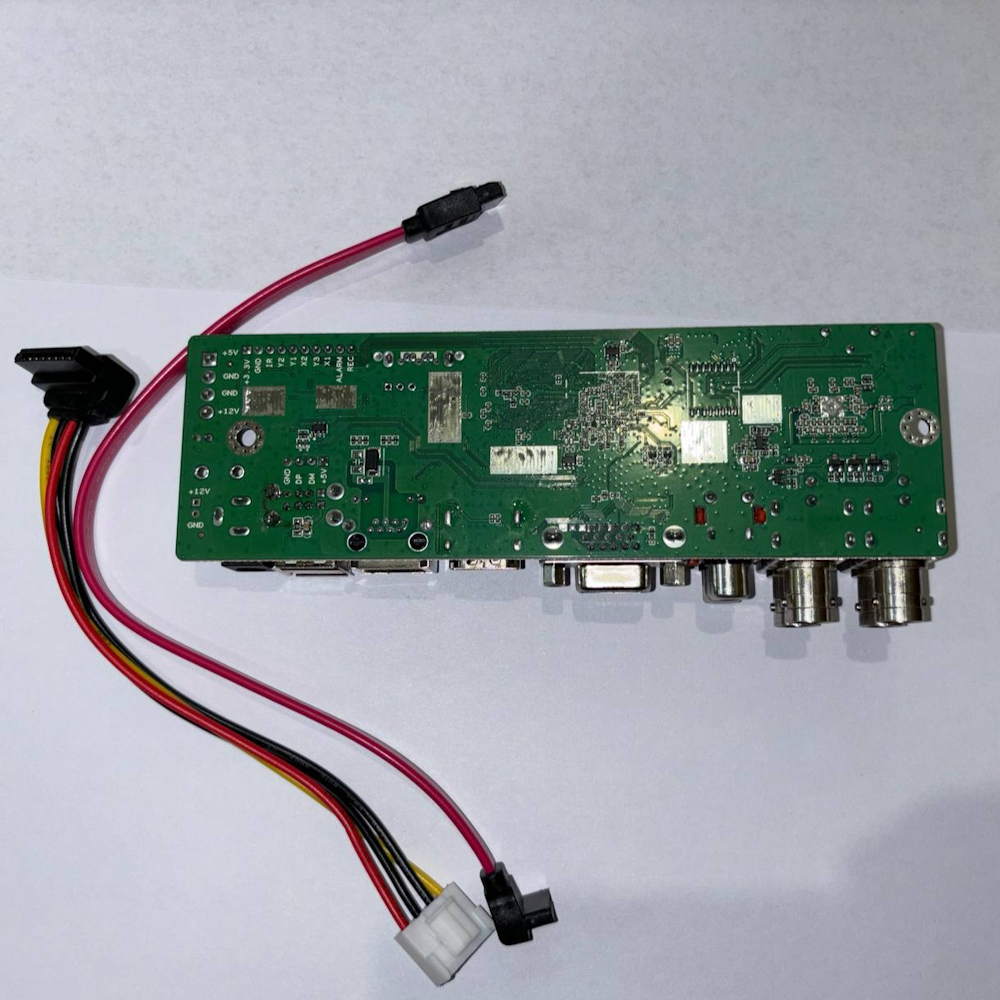

Motherboard 4-channel 1080N 4th in the 1st (AHD / TVI / CVI / CVBS) AHB7804R-MS-V3

Motherboard 4-channel 1080N 4th in the 1st (AHD / TVI / CVI / CVBS) AHB7804R-MS-V3

Motherboard 4-channel 1080N 4th in the 1st (AHD / TVI / CVI / CVBS) AHB7804R-MS-V3

1,900.00р.
1,900.00р.
Pre-Order
  • operating system: XM
  • Video compression algorithm: H 264
  • Number of Channels: 4 channel
  • video Resolution: PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480)
  • video Output: 1 VGA / HDMI
  • Audio Input: 1 channel
  • Audio output: 1 channel
  • Maximum frame rate: 120 sec (NTSC), 100 sec (PAL)
All specifications
  • Product Code:   AHB7804R-MS-V3

The motherboard (four in one), which supports AHD / TVI / CVI / CVBS cameras up to 2.0 Mpix 1080N. You can easily manage your device with a USB mouse. To store information, you can connect a hard drive, supports up to 8TB HDD (not included in the kit). The device records data at a rate of 120 frames per second. There is access through the cloud service P2P: www.xmeye.net / Android; IOS APP xMeye mobile viewing.

Two-year warranty



DVR
operating system
XM
Video compression algorithm
H 264
Number of Channels
4 channel
video Resolution
PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480)
video Output
1 VGA / HDMI
Audio Input
1 channel
Audio output
1 channel
Maximum frame rate
120 sec (NTSC), 100 sec (PAL)
audio compression
8kHz * 16bit ADPCM
recording Modes
Manual Installation / motion sensor / alarm / schedule
HDD Interface
8TB 1 x HDD SATA (item does not contain a hard disk)
network interface
RJ45, 10M/100M
network Protocol
Support TCP / IP, UDP, DHCP, DNNS, PPPoE
network capabilities
Support for viewing real-time mobile phone
USB2.0 interface
2 ports
power consumption
From 10 to 15 W.
Power
DC 12V/2A (power adapter included)
Motherboard 4-channel 1080N 4th in the 1st (AHD / TVI / CVI / CVBS) AHB7804R-MS-V3
