4-channel video surveillance set with AHD cameras 2,0 Mpix 1080Р AHD4012

4-channel video surveillance set with AHD cameras 2,0 Mpix 1080Р AHD4012

4-channel video surveillance set with AHD cameras 2,0 Mpix 1080Р AHD4012

5,500.00р.
5,500.00р.
8
  • operating system: Linux
  • Video compression algorithm: H 264
  • video Resolution: PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 х 1200
  • video Input: Local analog input: AHD-NH (1080 P) * 4 / AHD-M (720P) * 4 / AHD-L (960 H) * 4; Mixed input: 2 * AHD-M (720P) + 2 * 720 P (IP network) Digital input: 4 * 1080 P (IP network) / 8 * 960 P (IP network) / 8 * 720 P (IP network)
  • video Output: 1 VGA HDMI
  • Audio Input: 1 channel
  • Audio output: 1 channel
  • Maximum frame rate: 120 sec (NTSC), 100 sec (PAL)
All specifications
  • Product Code:   AHD4012

Set video is fully connected to each other peripherals. It is very convenient equipment for those who are looking for a good solution for the protection of the apartment, porch, or a country house. The hybrid 4-channel 960H AHD-NHS supports: AHD analog cameras to 3000TVL (2.0 Mpix 1080P) compression H.264 video, remote viewing via a mobile phone, hard disk up to 4 TB 3.5 "HDD SATA (not included) to system convenience attached wired optical mouse. The DVR records the data at 100/120 frames per second. There is access via P2P cloud service (mobile view)
Local analog input: AHD-NH (1080 P) * 4 / AHD-M (720P) * 4 / AHD-L (960 H) * 4;
Mixed input: 2 * AHD-M (720P) + 2 * 720 P (IP network)
Digital input: 4 * 1080 P (IP network) / 8 * 960 P (IP network) / 8 * 720 P (IP network)



DVR
operating system
Linux
Video compression algorithm
H 264
video Resolution
PAL: CIF (352x288), HD1 (704x288), D1 (704x576) NTSC: CIF (352x240), HD1 (704x240), D1 (704x480) 1024 * 768 1280 * 1024 1920x1080P 1600 х 1200
video Input
Local analog input: AHD-NH (1080 P) * 4 / AHD-M (720P) * 4 / AHD-L (960 H) * 4; Mixed input: 2 * AHD-M (720P) + 2 * 720 P (IP network) Digital input: 4 * 1080 P (IP network) / 8 * 960 P (IP network) / 8 * 720 P (IP network)
video Output
1 VGA HDMI
Audio Input
1 channel
Audio output
1 channel
Maximum frame rate
120 sec (NTSC), 100 sec (PAL)
audio compression
8kHz * 16bit ADPCM
recording Modes
Manual Installation / motion sensor / alarm / schedule
HDD Interface
4TB 1 x HDD SATA (item does not contain a hard disk)
network interface
RJ45, 10M/100M
network Protocol
Support TCP / IP, UDP, DHCP, DNNS, PPPoE
network capabilities
Support for viewing real-time mobile phone
USB2.0 interface
2 ports
P2P
support
power consumption
From 10 to 15 W.
Power
DC 12V/2A (power adapter included)

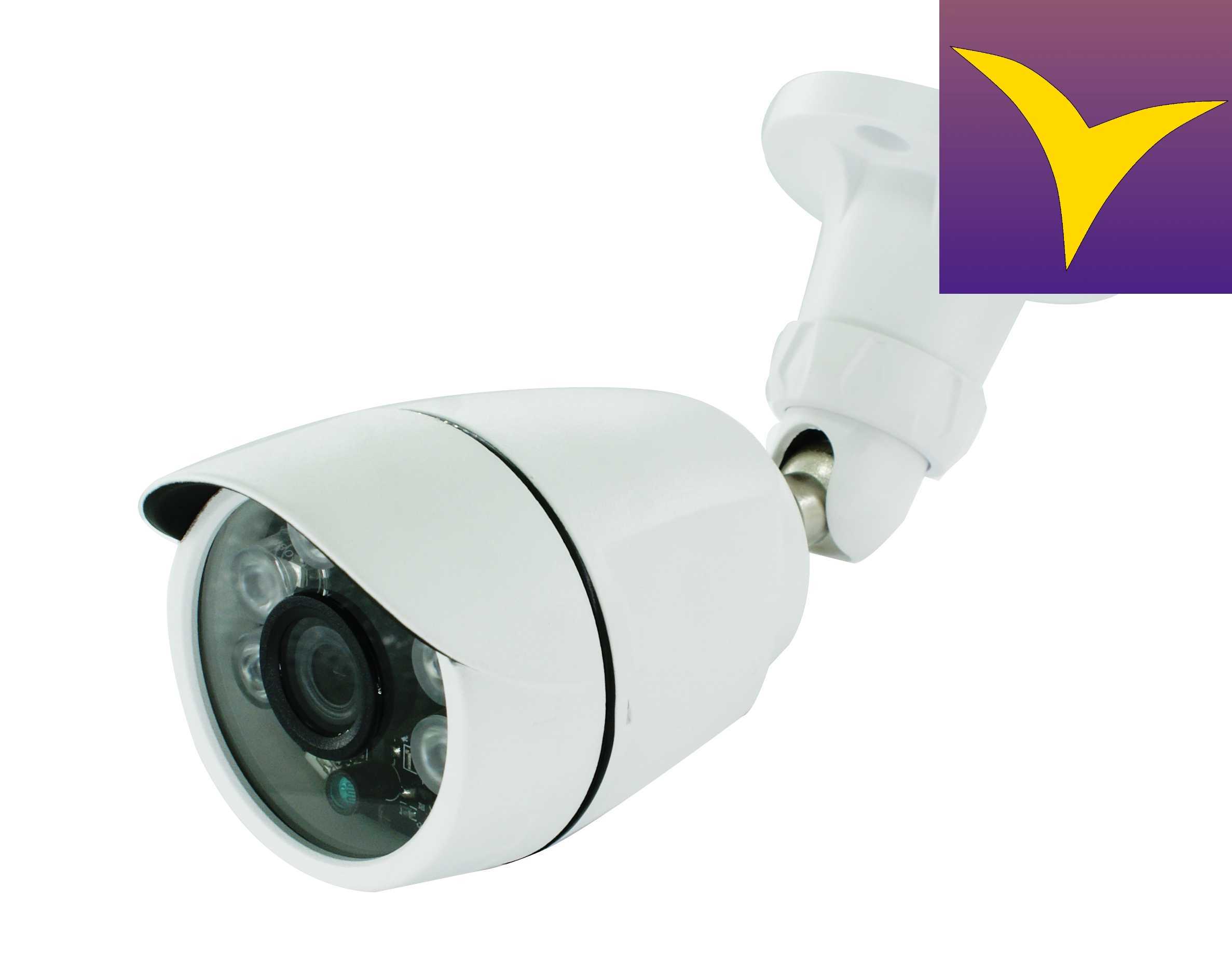

Camcorders
Protection class camera
Outdoor (IP66)
Resolution
3000 TVL 1080 P 2.0MP
matrix
CMOS
lens
3,6mm / 6mm
Night vision range
IR 20m
sensitivity
0.2Lux
BLC
automatic
power consumption
Less than 3 watts
Electronic Shutter
1/50 (1/60) - 100 000 sec
Signal / noise
More than 48dB (AGC)
synchronization
Internal
Gamma Correction
0.45
video Output
1 Vp-p at 75 ohm
white Balance
automatic
video system
PAL / NTSC
power
DC 12V
4-channel video surveillance set with AHD cameras 2,0 Mpix 1080Р AHD4012
