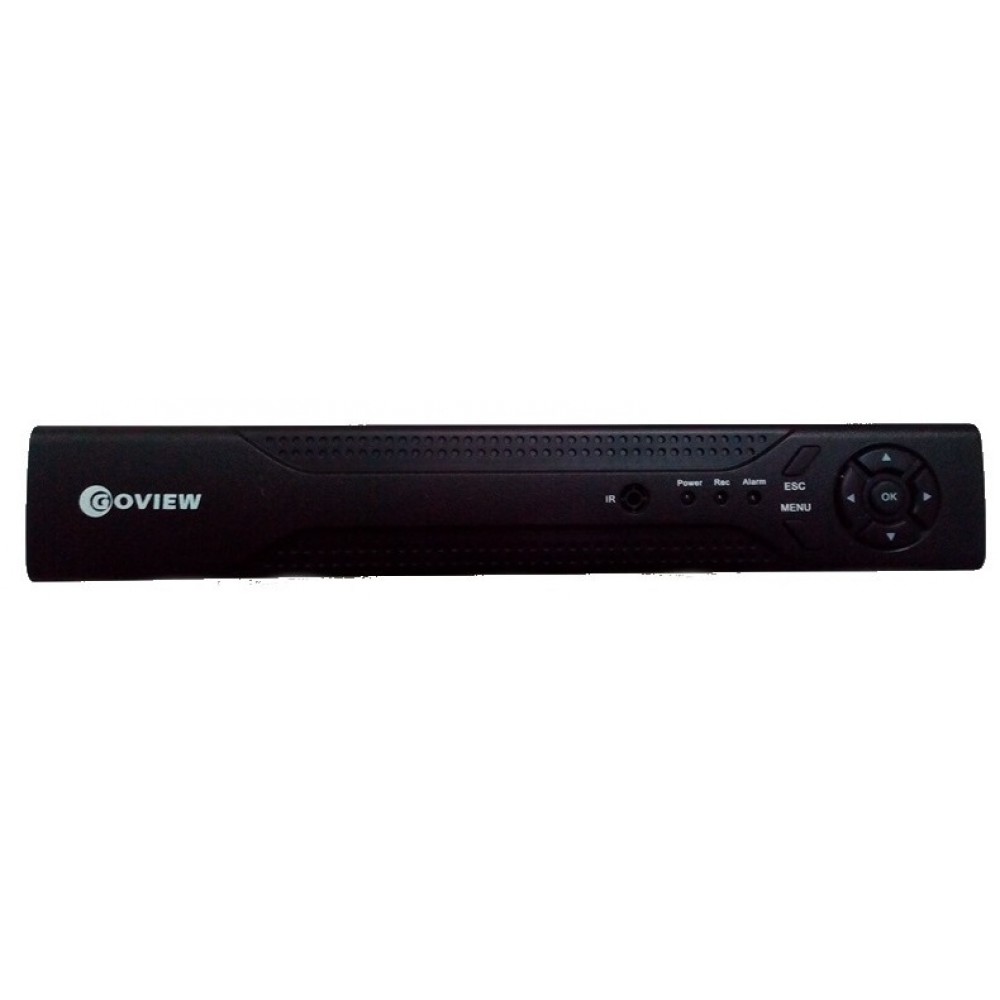

DVR 4-channel HD CVI VD-6V04 , GOVIEW

DVR 4-channel HD CVI VD-6V04 , GOVIEW

DVR 4-channel HD CVI VD-6V04 , GOVIEW

2,500.00р.
2,500.00р.
1
  • operating system: Linux
  • Video compression algorithm: H.264
  • Number of Channels: 4 channels
  • video Resolution: 720P (1280 * 720/1280 * 600) / 960H (960 * 576/960 * 480) / D1 / 4CIF (704 * 576/704 * 480) / CIF (352 * 288/352 * 240) / QCIF (176 * 144/176 * 120)
  • video Output: 1 BNC / 1 VGA / HDMI
  • Audio Input: 1 channel
  • Audio output: 1 channel
  • Maximum frame rate: NTSC (525Line, 60f / с), PAL (625Line, 50f / с)
All specifications
  • Product Code:   VD-6V04

4CH HD CVI; H.264; 100 KS / KS 120; BNC; 4 TB SATA HDD; USB

4CH HD CVI This DVR advantageous embodiment of the system of video HD-quality, as opposed to technologies based on IP or HD-SDI cameras. In HD-CVI used modulation technique video that has the ability to broadcast video with progressive scan 720p or 1080p standard format via a coaxial cable, which is used in analog CCTV systems. You can easily manage your DVR using a USB-mouse. The following operating systems Symbian, WindowsMobile, for iPhone, Android, BlackBerry. For storage, you can connect a hard drive, supports up to 4TB HDD (batteries not included). You have the ability to browse through the internet, play a recording, adjust the system to upload files to obtain information. Recorder records data at a rate 100/120 frames per second. Also, the format of HD-CVI transmits video, audio and control signals (OSD or PTZ), using a communication line, without requiring separation of the individual lines, depending on the type of signal.

Two-year warranty

DVR
operating system
Linux
Video compression algorithm
H.264
Number of Channels
4 channels
video Resolution
720P (1280 * 720/1280 * 600) / 960H (960 * 576/960 * 480) / D1 / 4CIF (704 * 576/704 * 480) / CIF (352 * 288/352 * 240) / QCIF (176 * 144/176 * 120)
video Output
1 BNC / 1 VGA / HDMI
Audio Input
1 channel
Audio output
1 channel
Maximum frame rate
NTSC (525Line, 60f / с), PAL (625Line, 50f / с)
audio compression
8kHz * 16bit ADPCM
recording Modes
Manual Installation / motion sensor / alarm / schedule
HDD Interface
4TB 1 x HDD SATA(item does not contain a hard disk)
network interface
RJ45, 10M/100M
network Protocol
Support HTTP, IPv4 / IPv6, TCP / IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter
Write Speed
The main flow: 720 / 960H / D1 / HD1 / 2CIF / CIF (1 ~ 25/30 frames per second) Additional stream: CIF / QCIF (1 ~ 25/30 frames per second)
network capabilities
Support for viewing real-time mobile phone
USB2.0 interface
2 ports
PTZ control
yes
power consumption
From 10 to 15 W.
Power
DC 12V/2A (power adapter included)
